T1 Folder

Outstanding economical solution for newspaper applications.

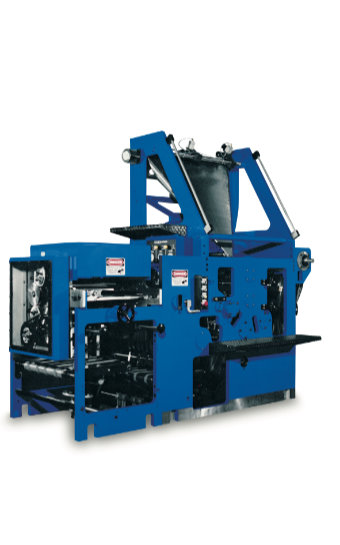

T1 Folder

Tensor's T-1 jaw folder is an outstanding economical solution for newspaper applications.

Rated up to 35,000 PPH
1:2:1 cylinder geometry
Web capacity up to 8 webs half-folded, or 6 webs quarter-folded

Cutoff: 19" through 24.8" (483mm through 630mm)

Web Widths: 20" through 40" (508mm through 1016mm)

Versatile and Economical

Accepts all standard newspaper sizes and thicknesses
Outstanding economic value with exceptional, proven performance
Excellent addition to existing press lines of all manufacturers
Flexible solution with fast ROI

Durable Design

Helical main folder drive gears with oil lubrication
True conical design on the chrome-plated former board, pre-drilled for air
Highly adjustable jaws to easily switch between light and heavy paper stocks, or from single web to multiple web jobs
Pneumatically loaded trolleys and slitter at the RTF control panel
Independent trolley and slitter pressure adjustments can be individually controlled
Two sets of driven nipping rollers
Cutoff size driven RTF roller
Overload clutches on the horizontal drive and quarter folder for jam protection
Heavy-duty frame construction with rigid cross members
Operating side delivery extension

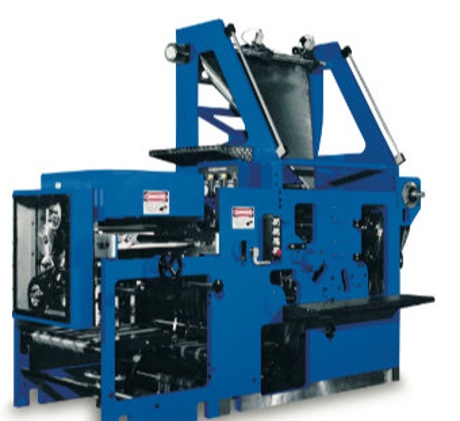

T-1 Folder
